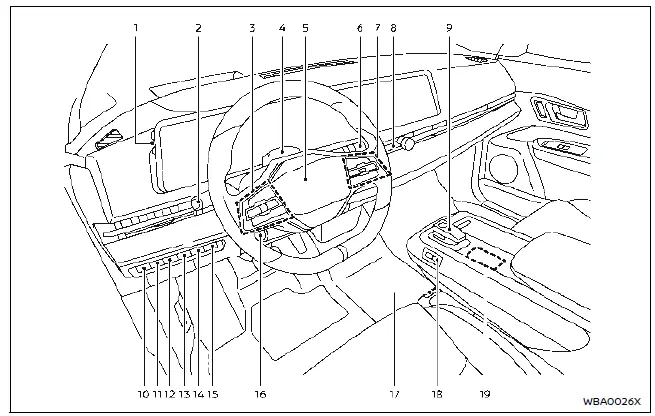

Nissan Ariya: Cockpit

1. Instrument brightness control
2. Headlight and turn signal switch
3. Steering-wheel-mounted controls (left side)
   • Audio control**
   • Vehicle information display control
4. Driver monitor camera
5. Steering wheel
   • Horn
6. Wiper and washer switch
7. Steering-wheel-mounted controls (right side)
   • ProPILOT Assist switch
   • Bluetooth Hands-Free Phone System switches**
   • Voice Recognition system switch**
   • Siri Eyes Free**
8. Hazard indicator flasher switch
9. Shift lever/Park button
10. Headlight aiming control switch
11. Steering Assist switch
12. Head Up Display (HUD) switch*
13. Automatic brake hold switch
14. Immediate charge switch
15. Power liftgate switch*
16. Tilt and telescopic steering wheel control
17. Power outlet
    • USB (Universal Serial Bus) connection ports**
18. Power sliding armrest switch
19. Haptic switches
    • Drive Mode Selector
    • e-Step switch
    • ProPILOT Park switch*

*: if so equipped
**: See the separate NissanConnect Owner's Manual.

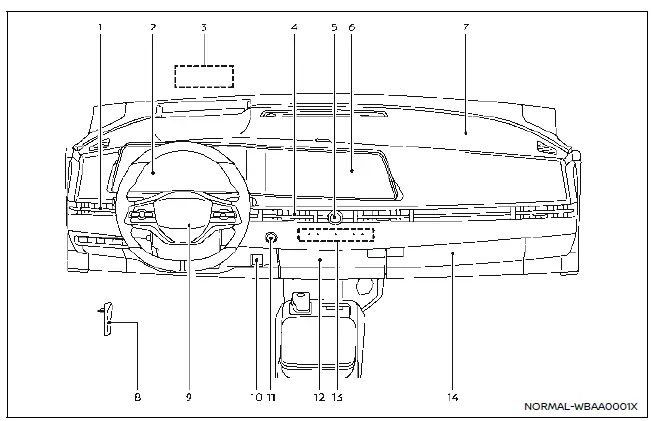

Instrument panel

1. Side ventilator
2. Meters and gauges/Vehicle information display/Clock
3. Head Up Display (HUD)*
4. Center ventilator
5. Audio switch**
6. Touch screen display
   • Audio system** or navigation system**
   • RearView Monitor*
   • Intelligent Around View Monitor*
   • Bluetooth Hands-Free Phone System**
   • Heater and air conditioner control display
   • Heated seat
   • Climate controlled seat*
   • Heated steering wheel
7. Front passenger supplemental air bag
8. Hood release handle
9. Driver supplemental front-impact air bag
10. Parking brake switch
11. Push-button power switch
12. Flexible center storage
13. Heater and air conditioner control
    • Rear window and outside mirror defroster switch
14. Glove box

*: if so equipped
**: See the separate NissanConnect Owner's Manual.
