Nissan Ariya: High voltage precautions

High-voltage components

WARNING

• The EV (Electric Vehicle) system uses high voltage up to approximately DC 400 volt. The system can be hot during and after starting and when the vehicle is shut off. Be careful of both the high voltage and the high temperature.

  Follow the warning labels that are attached to the vehicle.

• Never touch, disassemble, remove or replace high-voltage parts and cables as well as their connectors because they can cause severe burns or electric shock that may result in serious injury or death. High-voltage cables are colored orange. The vehicle high voltage system has no user serviceable parts. It is recommended that you take your vehicle to a NISSAN certified ARIYA dealer for any necessary maintenance.

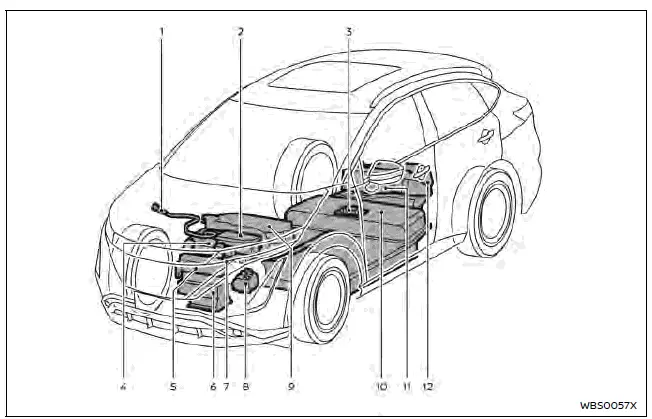

1. High-voltage wire harnesses (colored orange)
2. High voltage junction box
3. Service plug
4. On Board Charger (OBC)
5. Inverter (2WD models)/Front inverter (AWD models)
6. Traction motor (2WD models)/Front traction motor (AWD models)
7. DC/DC converter
8. Air conditioner compressor
9. PTC heater
10. Li-ion battery
11. Rear inverter (AWD models)
